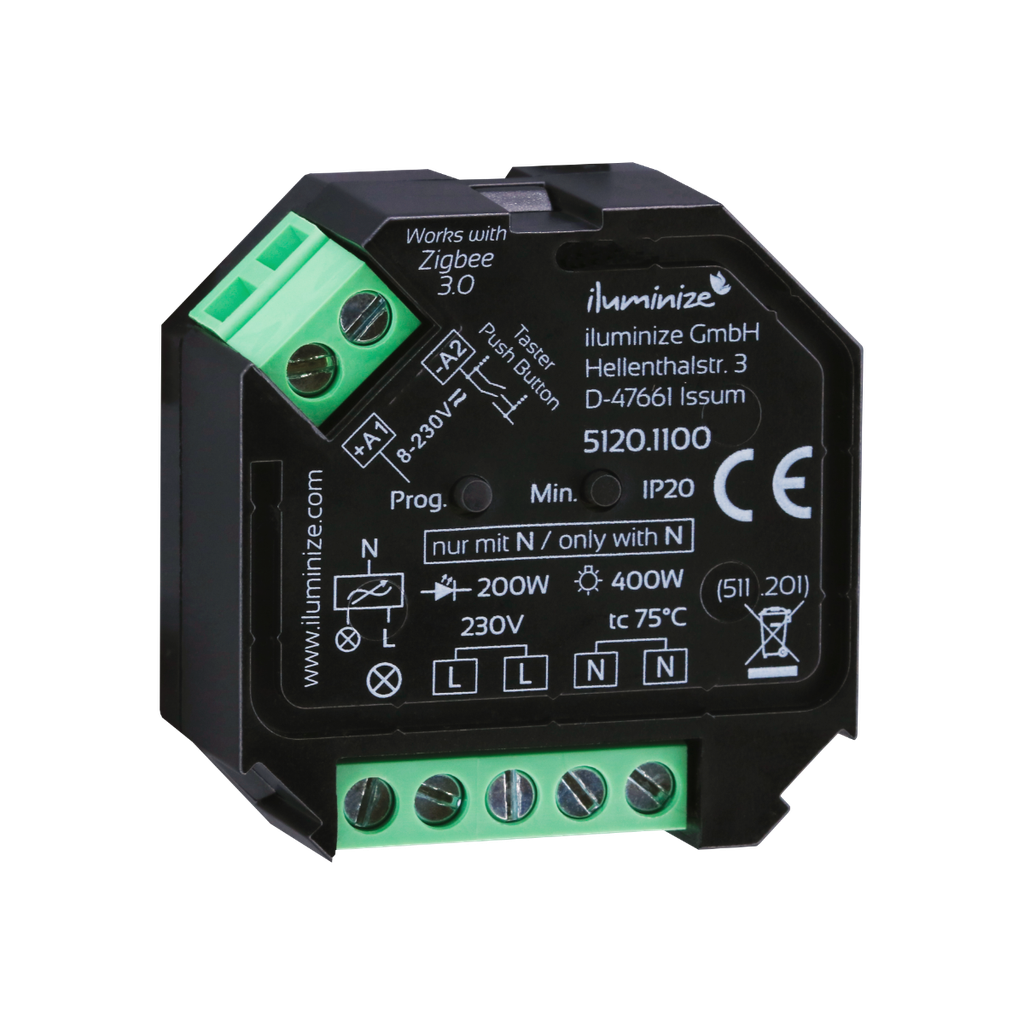

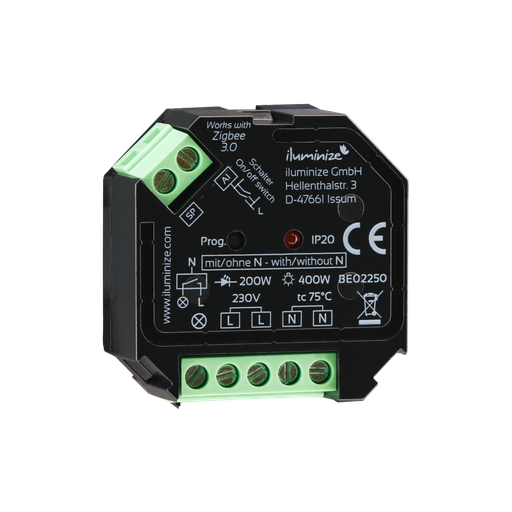

Zigbee actuator 230V - integrate even high-voltage luminaires smartly into your LED system

Even your already active LED lamps and luminaires can be operated smart and coordinated at 230V. This does not require a connection of power supply and controller, but only the appropriate component. Our high voltage Zigbee actuator brings everything necessary and is perfect for dimming and switching at 230V.

If your lights also meet the following requirements, nothing stands in the way of a successful cooperation: they are dimmable per phase section at 230V constant voltage and can be dimmed with pulse width modulation (PWM).

If the mentioned requirements are fulfilled, our radio actuator is suitable for

• LED lamps

• LED lamps incl. driver

• Halogen lamps (GU10)

• Incandescent bulbs

Kompatible Zigbee Koordinatoren

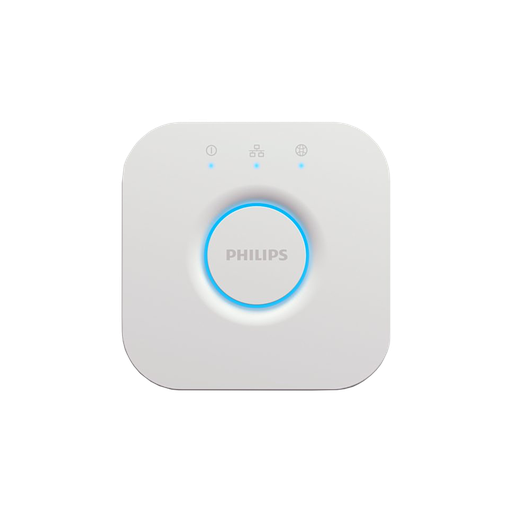

Our actuator communicates via Zigbee and thus addresses many coordinators such as Philips Hue. The coupling with the Philips Hue Bridge provides you with a comprehensive and orderly integration of many LED lamps. With the Philips Hue Bridge, HomeKit is also supported, but not entertainment. But these gateways are also compatible with our Zigbee actuator:

• Amazon Echo Dot Gen. 4

• IKEA TRÅDFRI

• Google Assistant

• and many more

Abgestimmte Bedienung

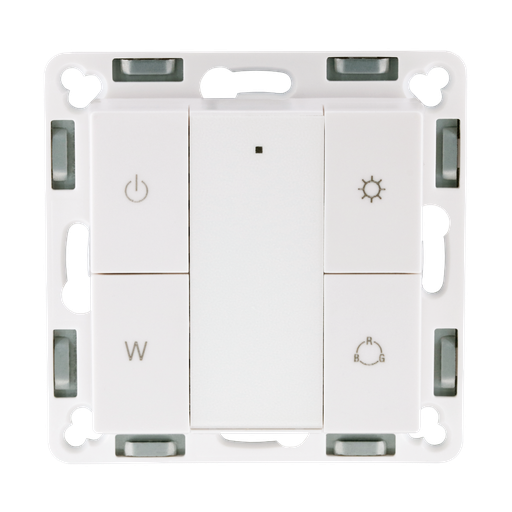

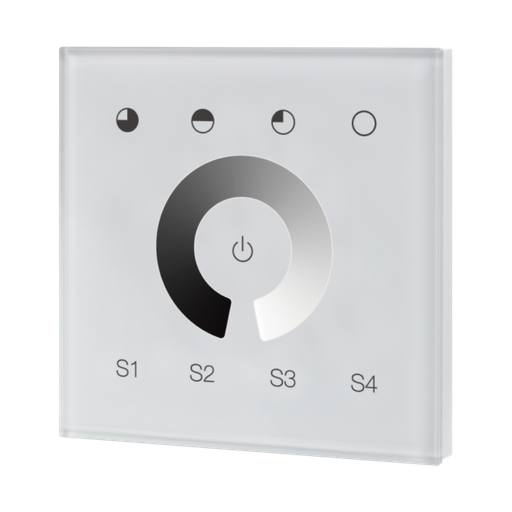

Choose between different Zigbee Touchlink enabled controllers and take control of your white lights into your own hands. Whether

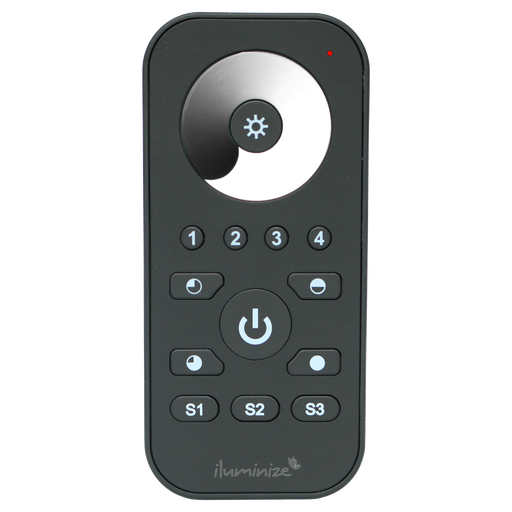

remote control, wall dimmer or via smartphone? With just a few smart clicks, you can control the light in your four walls.

Effektive Einstellung

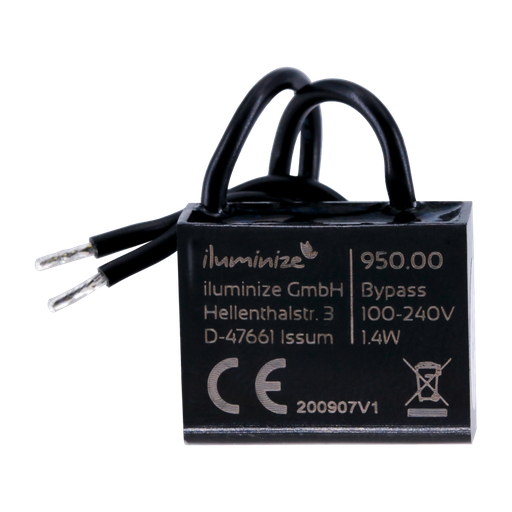

At the touch of a button, you can set the minimum brightness to prevent the connected lamps from flickering. This phenomenon occurs when your lamps are dimmed too much. The solution here is the iluminize Bypass for actuators without N-conductor.

Optionale Zusatzfunktion

Dimming and switching can also be done additionally/exclusively with one or more pushbuttons (from multiple locations as with a changeover switch, matching the electrical installation series, not included). The voltage range here (for pushing buttons) is 8-230V, so just about any push button can be used.

Mit und ohne N-Leiter

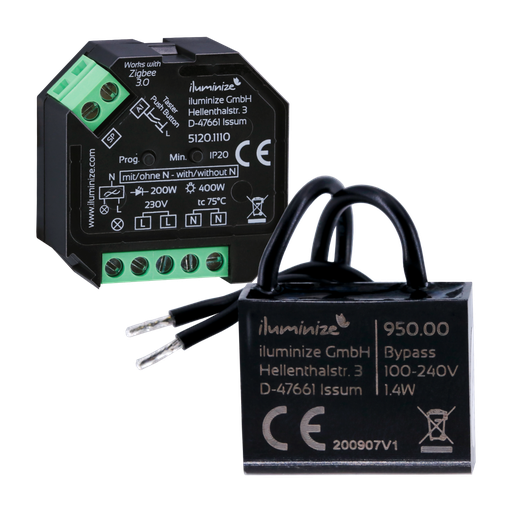

Works with and without N-conductor - without N-conductor please use the iluminize  Bypass according to the wiring diagram if the LED is less than 20W or if the lamps are afterglowing. This is also available in our compatible iluminize Bypass-Set. Operation without neutral conductor is only possible with the marked models.

Simple Montage

Thanks to its small size and compactness, our Zigbee actuator can find a place in many locations. In case of deep flush-mounted boxes (min. 60mm deep) it is also possible to mount a switch or a socket above the actuator. Please note the necessary safety regulations.

Lieferumfang

The actuator is delivered without remote control/coordinator and needs additional components for operation. You can also find them in our store under the category Zigbee. With the delivery you get:

• 1 x actuator

• Instruction manual

Wichtig zu wissen

• Zigbee Lightlink & Touchlink (3.0)

• LED max. 200W / Halogen max. 400W

• If the actuator is disconnected from the mains or if the power fails, it "remembers" the last setting

• LED filament lamps can often only be dimmed strongly if flickering is accepted

• Pushbuttons with status lights must not be used

• Drivers & LED lamps can sometimes only be dimmed to 50/60% flicker-free, depending on the type. This is due to technical restrictions on the respective driver and is not caused by this actuator.
